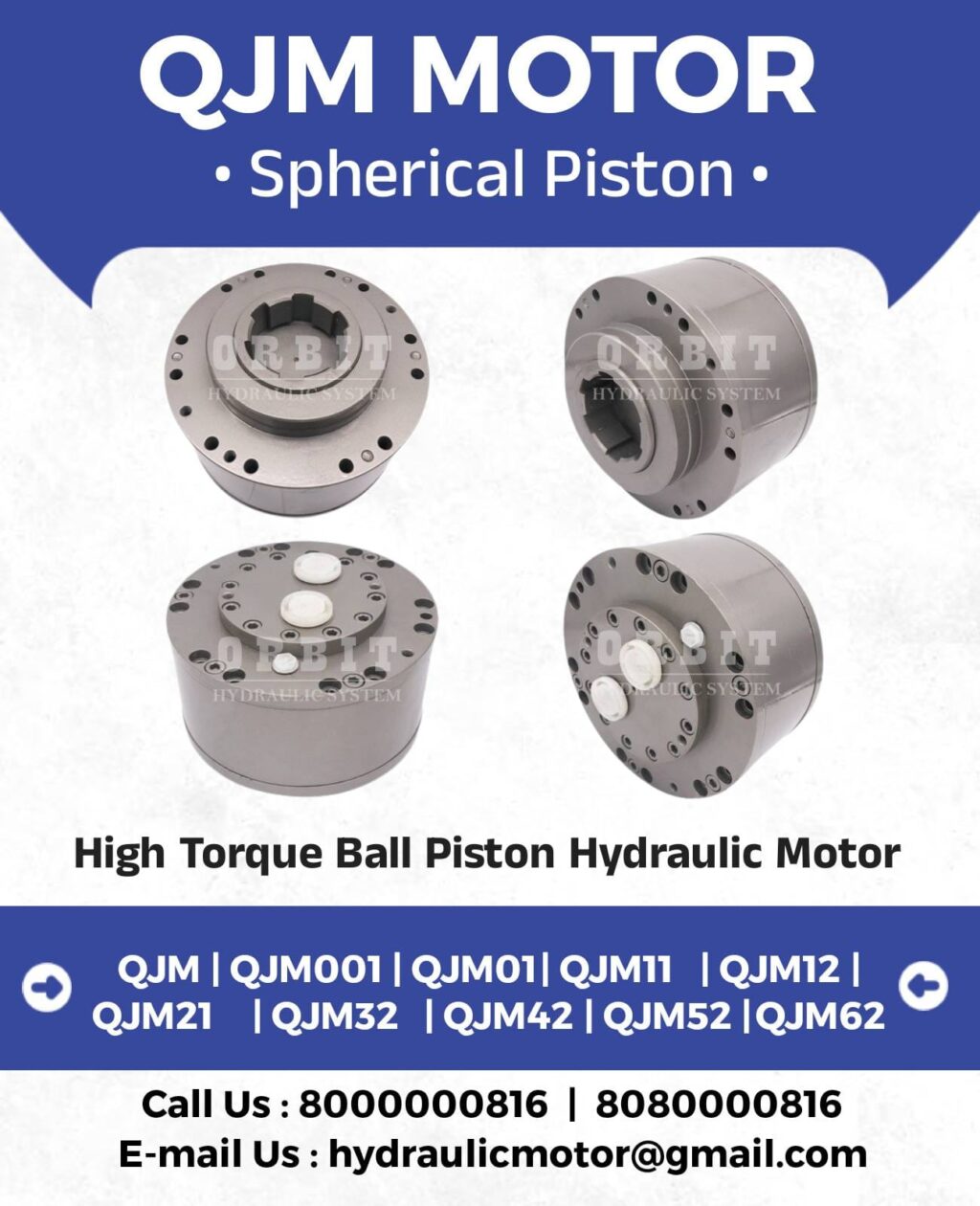

1QJM12 Hydraulic Motor
| Type | Displacement | Pressure(MPa) | Rotational Speed Range(r/min) | Rated output Torque(N.M) | Mixture power (kw) | |
| (L/rev) | Rated | Peak | ||||
| 1QJM12-0.8 | 0.8 | 10 | 16 | 4~250 | 1170 | 25 |
| 1QJM12-1.0 | 1 | 10 | 16 | 4~200 | 1480 | 25 |
| 1QJM12-1.25 | 1.33 | 10 | 16 | 4~160 | 1968 | 25 |
| Light Weight | Compact Size |
| Wide range of speed control | Consistency in performance |
| Long lift | High Torque Output |
| High Efficiency | Smooth Operation |
| Low Noise Level | Break Option Available |
QJM ( ORBIT Make Hydraulic Motor ) Installation Requirements:
1. All types of hydraulic motors can be installed and used in any direction.
2. Due to the floating status of the rotor in the QJM motor, a 2-3 mm distance should be maintained before connecting the spline to ensure
unrestricted movement of the rotor in the shaft direction (as illustrated in the drawing). The splined hole of the motor and the splined
shaft of the operating mechanism should be aligned and kept in loose coordination. For technical requirements on the spline and locating seat, refer to the provided drawing.
3. After mounting the hydraulic motor in the machine and connecting the pipeline, turn the motor by hand or with a spanner.
The rotor should be flexible and free from blocks or imbalance.
4. Since the oil feed shaft and stator are in rigid connection, the oil pipeline of this model can be connected with a steel pipe.
